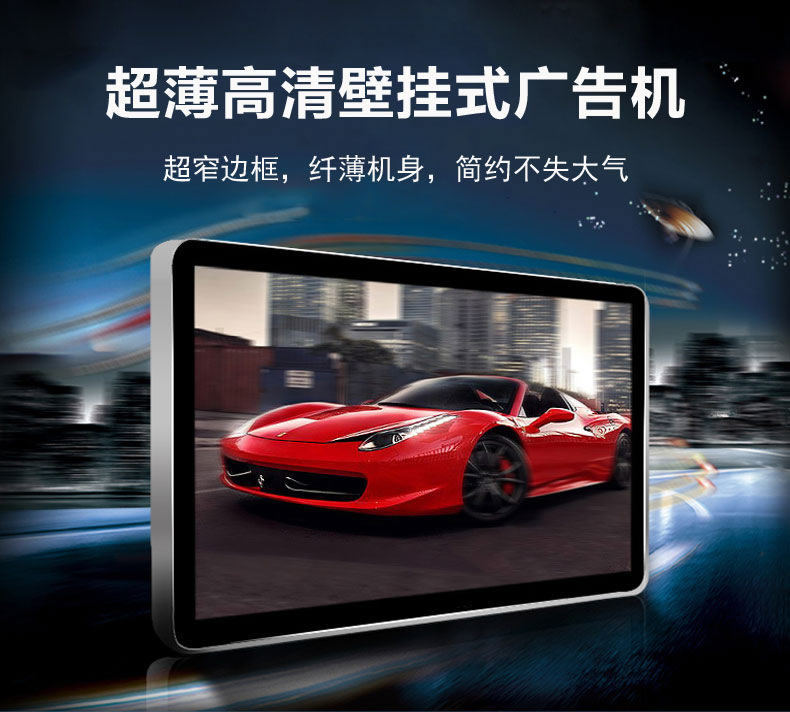

PRODUCT MODEL：Wall mounted advertising machine
Product features:
Ultra thin and lightweight design, easy to use and beautiful
High resolution, high contrast, high brightness, greatly enhance the sense of layering in the picture, and better represent details
● Equipped with automatic residual image elimination function to protect the long-term use of the LCD screen
● Equipped with black level extension adaptive function, enhancing the deep sense of image scenery
Adopting an industrial grade LCD screen, the video images are more vivid and the stereoscopic effect is stronger
16.7M color, the image is more natural and delicate, with truly no trailing
Equipped with intelligent temperature control, environmental protection, and high reliability, it has good stability and is particularly suitable for working in harsh environments
● Long lifespan, 7 * 24-hour uninterrupted operation, up to 60000 hours or more
Features of the standalone version:
The main chip adopts MSTAR's high-definition decoding series products, supporting 1920x1080 high-definition video decoding with stable and mature performance.
The board components are all made of international brands such as rubycon, MPS from the United States, and DIODES from Taiwan
● Super decoding supports most video formats such as MPG, MPG-1/4, AVI, MP4, TS, MKV, RMVB, MP3, wma, JPEG, BMP, etc
● Rich interfaces: Supports SD card, CF card, USB 2.0 hard drive, USB flash drive
Powerful digital audio amplifier, high fidelity audio decoding, powerful 2x 5W high fidelity speaker speakers, perfectly restoring multimedia sound
Features of the online version:
The main chip adopts the Sigma Designs semiconductor company series products from the United States, with excellent 1920x1080 high-definition video decoding image quality and support for mainstream high-definition video packaging formats.
Adopting a 500 333M main frequency MIPS FPU and hard decoding, it perfectly supports 1920x1080P high-definition video files, and also supports multiple split screen playback rss、PDF、 Slide files and TXT flowing subtitles perfectly showcase the charm of multimedia digital signage for you
Low cost operation and maintenance, as well as efficient program release and updates: This product supports flexible network operation through LAN, WIFI, and 3G, and can control every digital sign in the network anytime and anywhere from any location with internet access worldwide.
Supports large capacity SATA hard drives, SD card storage media, and USB 2.0 interfaces, allowing your machine to efficiently update programs through a USB flash drive even without networking.
Product specification parameter table:
| Single machine version functional parameters |
||
| interface |
2xUSB2.0，1xSD |
|
| storage medium |
USB flash drive, SD card |
|
| Video |
MPG,MPG-1,MPG-2,MPG-4,AVI,MP4,DIV,TS,TRP,MKV,WMV,RM,RMVB |
|
| Maximum decoding resolution |
1920*1080 |
|
| picture format |
JPEG,PNG,BMP |
|
| Audio output |
2x5W |
|
| Maximum frame rate |
30frm/s |
|
| Audio sampling rate |
32KHZ,44.1KHZ,48KHZ,96KHZ |
|
| bit rate |
32kbps-384kbps |
|
| Maximum color depth |
24bit |
|
| Maximum bitrate |
USB2.0 device：30MB/S |
|
| PRODUCT FUNCTION |
Support menu rotation, OSD multi language display, automatic loop playback upon startup, breakpoint memory, ad insertion, timed power on/off, time-division volume, logo, flowing subtitles, USB program update, automatic generation of playback logs, support for videos, images, image music, and mixed mode. |
|
| Network version functional parameters |
||
| Master Chip |
Sigma Designs |
|
| interface |
2xUSB2.0, HDMI, 1xSD, CVBS (optional) |
|
| storage medium |
Class 6/10 SD card SATA DOM and hard drive |
|
| Video |
MPG, MPG-1, MPG-2, MPG-4, AVI, MP4, TS, MKV, WMV and other mainstream formats |
|
| Maximum decoding resolution |
1920x1080 |
|
| picture format |
GIF,JPEG,PNG,BMP |
|
| Audio output |
2x5W |
|
| Audio |
MP3,24bit linear PCM7.1 |
|
| Management software |
Arm architecture operating environment: Android 4.0.3 |
|
| Networking method |
RJ45 Ethernet port, WiFi, 3G (optional) |
|
| Program update method |
Network remote update, USB flash drive update |
|
| display mode |
Landscape/portrait, full screen/any split screen |
|
| Program Download |
Using FTP protocol for scheduled downloads and automatic downloads |
|
| Program Upgrade |
Remote upgrade, remote control upgrade |
|
| Timed power on/off |
Support any time period |
|
| Other functions |
Time sharing volume, background music, scrolling subtitles, logo, background image, remote power on/off, streaming media, timed playback of inserts, multiple program styles looping, timed broadcast of television. |
|
| Information release system software |
One click control of all advertising machines on the backend server, unlimited regional control |
|
